NU-X Verdugo Series Fireman Dual Channel Distortion Effects Pedal
SKU: NXNDS5
Shipping Information
Authorised Dealer
The NU-X FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V/18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.
Features
Modern Brown Sound in a box
True-bypass / Buffer-bypass toggle switch
18V / 9V toggle switch to get different dynamic range
2 independent GAIN, VOLUME knobs for rhythm / solo application

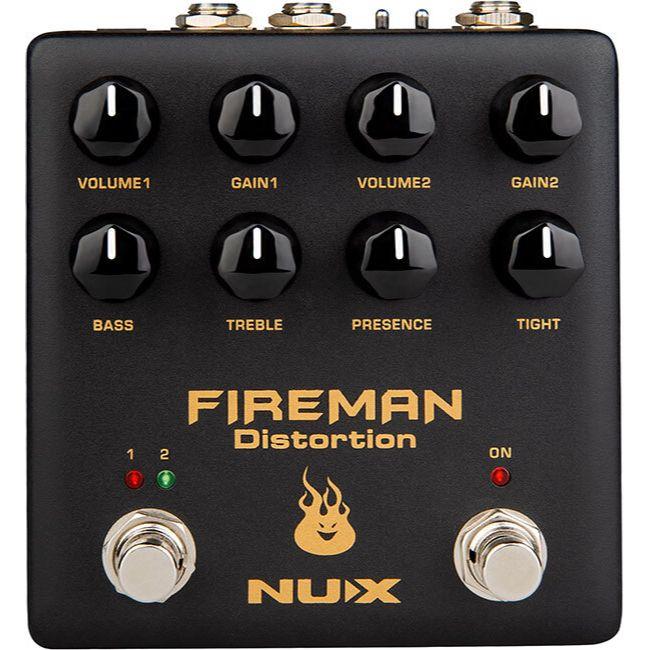

Control Panel
BASS: Adjusts the low-end response of distortion sound.
TREBLE: Adjusts the high-end response of distortion sound.
PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.
TIGHT: Shapes the low frequency content. (Turn it down to tighten the sound)
VOLUME 1: Adjusts the output level while in Channel1.
GAIN 1: Adjusts the distortion situation of the sound while in Channel1.
VOLUME 2: Adjusts the output level while in Channel2.
GAIN 2: Adjusts the distortion range of the sound while in Channel2.
1/2 Foot-switch: Chooses the current Channel for 1 or 2.
ON Foot-switch: Engages or disengages the distortion sound

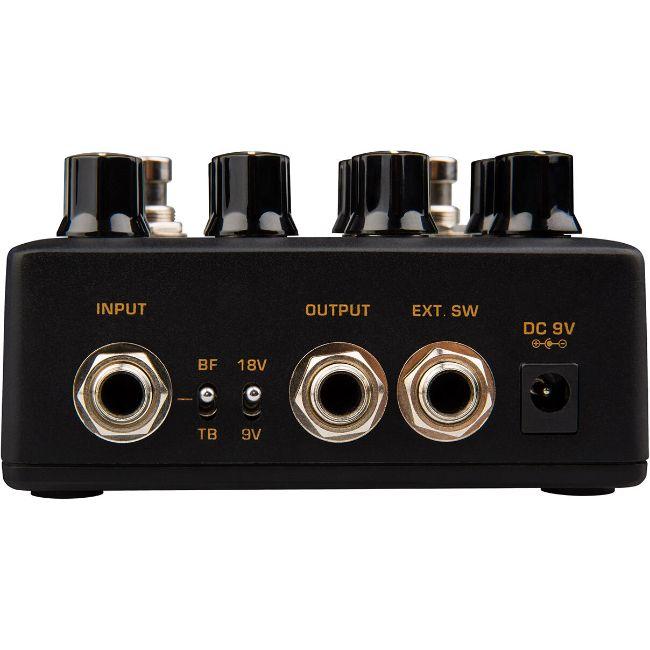

Input/Output
INPUT: Connects with your guitar or the signal from guitar side.
OUTPUT: Connects with the amplifier or to the amp side.
EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.
BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass.
18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.
DC Jack: Connects with 9V Negative Tip power with 100ma adaptor
