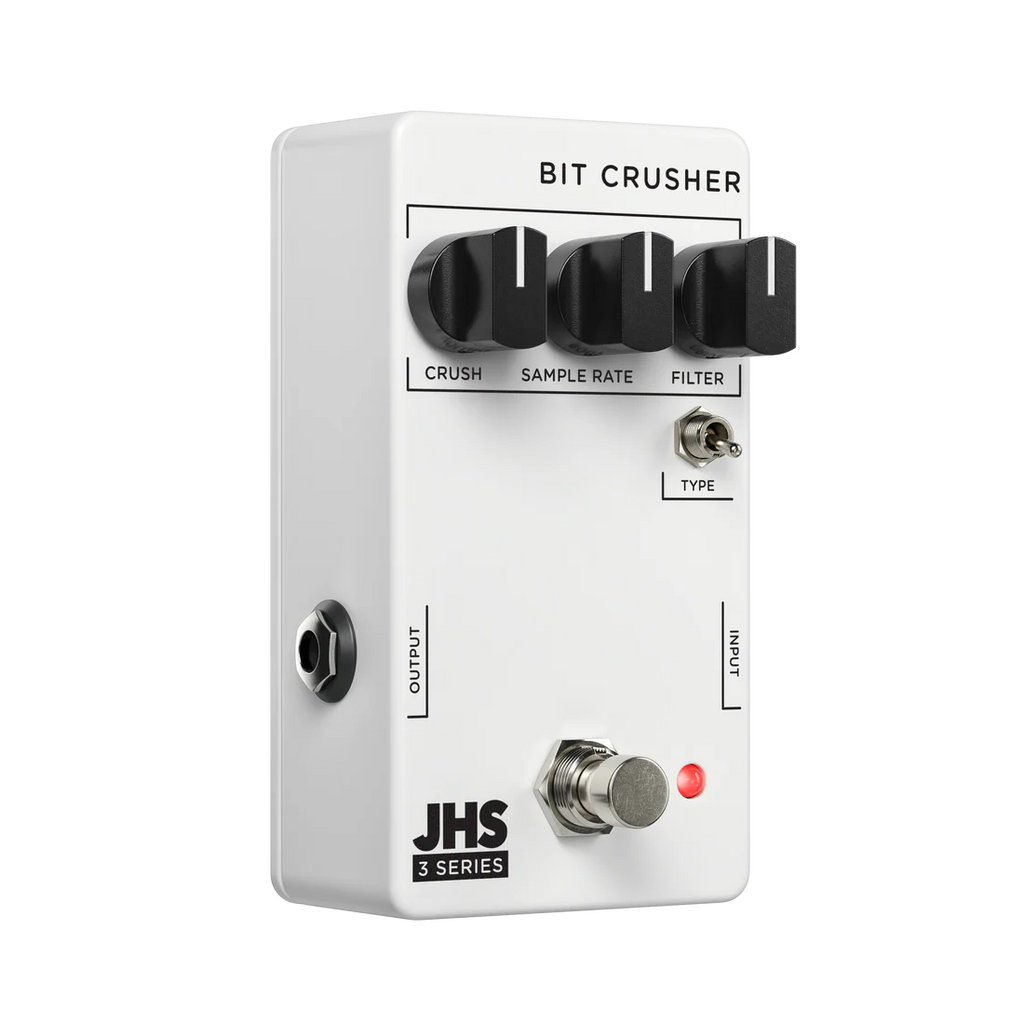

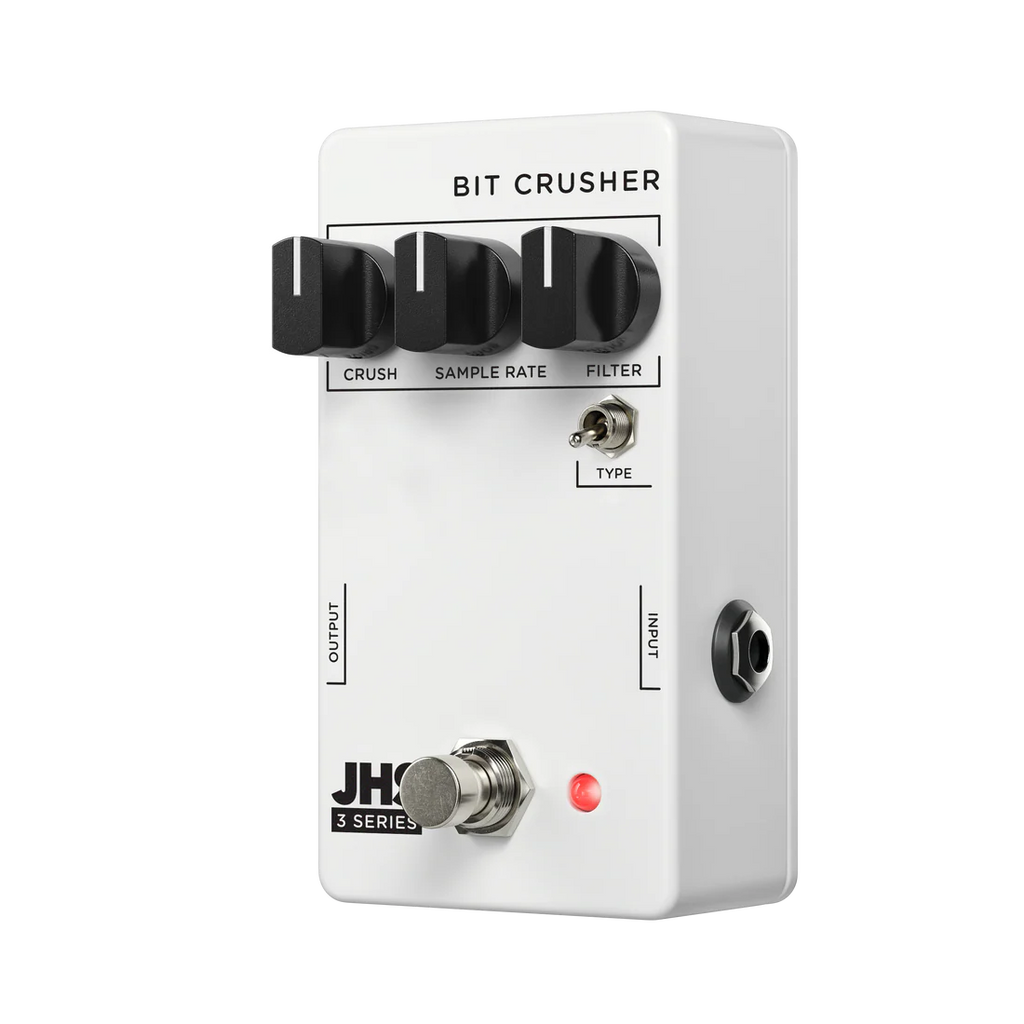

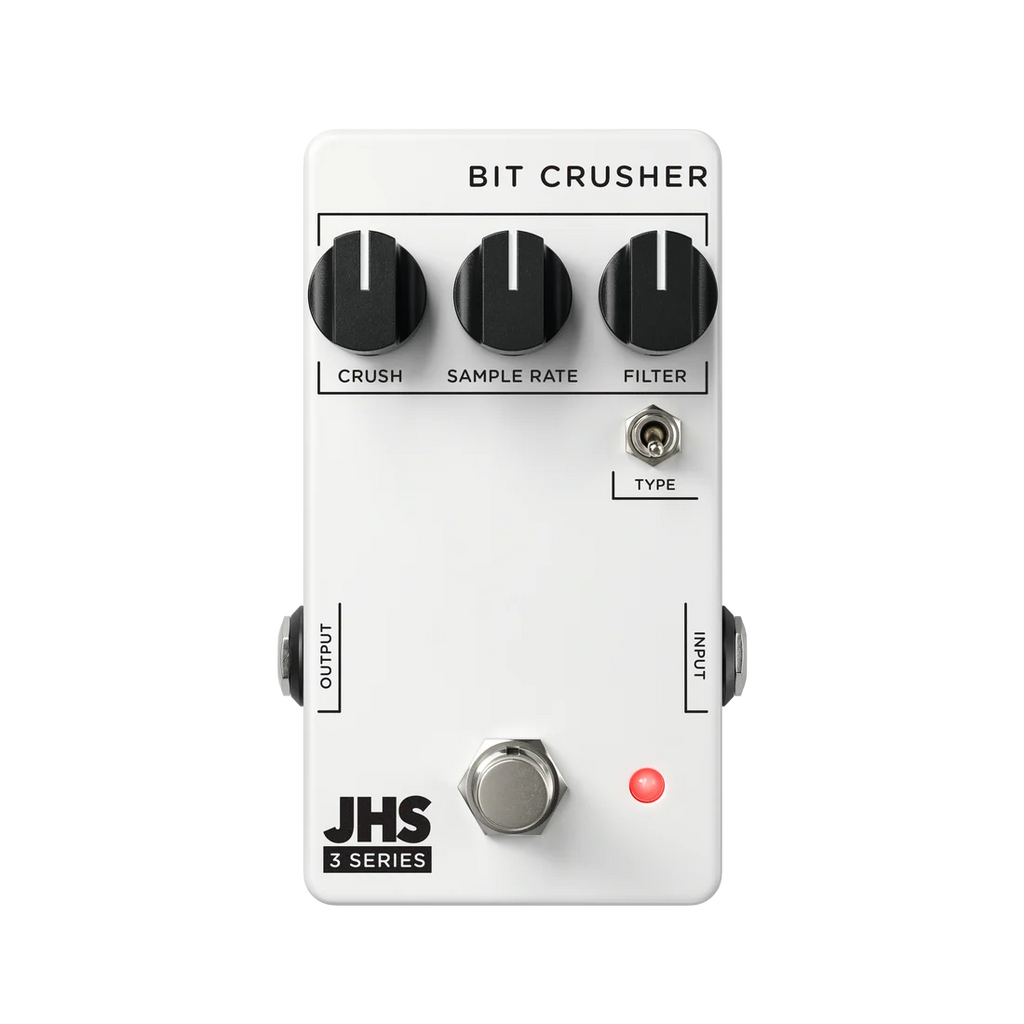

JHS 3 Series Bit Crusher Pedal
Sale price
$165.00
Regular price $195.00
3SBC
JHS 3 Series Bit Crusher Pedal
Sale price
$165.00
Regular price $195.00
Guaranteed Safe Checkout:
The JHS 3 Series Bit Crusher is part of JHS's affordable, simplified 3 Series range, built by JHS in Kansas City, Missouri, with three simple controls and one toggle. It was built specifically to do two things with precision: reduce bit depth and reduce sample rate, with a filter to shape the result. The Crush knob controls bit depth, running from full 24-bit resolution anticlockwise through to 1-bit clockwise, moving from unprocessed tone through grainy, textured sounds into square-wave aggression and gated digital distortion. The Sample Rate knob works anticlockwise from a clean 32.768kHz down to 2.5Hz, introducing aliasing and artefacts ranging from subtle harmonic shifts to metallic, ring-mod-like chaos and full digital collapse. The Filter knob shapes both - fully clockwise is unfiltered, and turning it anticlockwise sweeps the corner frequency for more filtering. The Type toggle switches filter character: down gives a second-order low-pass filter with no resonant peak, inspired by vintage synthesisers like Oberheim and well suited to bass guitar, while up sweeps a high-pass and low-pass filter in succession, focusing a band of mid-range frequencies reminiscent of a handheld game console. JHS notes the circuit uses a "zero-hole filter" - a theoretical signal processing concept it says had not previously found a practical application before being built into this circuit.
Highlights
- Purpose-built to independently reduce bit depth and sample rate, with a dedicated filter stage
- Crush knob sweeps from full 24-bit resolution down to 1-bit, from unprocessed tone to gated digital distortion
- Sample Rate knob runs from a clean 32.768kHz down to 2.5Hz for aliasing and ring-mod-like artefacts
- Type toggle switches between a vintage-synth-style low-pass filter and a mid-focused high-pass/low-pass sweep
- Uses a "zero-hole filter" circuit JHS describes as a first practical application of the concept
- Built by JHS in Kansas City, Missouri, as part of the affordable 3 Series range
Specifications
| Effect Type | Bit Crusher |
| Controls | Crush, Sample Rate, Filter knobs; Type toggle (low-pass / high-pass-low-pass filter character) |
| Power Supply | 9V DC, centre-negative |
| Current Draw | 65mA |
| Dimensions | 11.2 x 6.0 x 3.1cm |
All our pedals are tested on arrival, and regularly after that. Fast, tracked delivery to Brisbane, Gold Coast, Sunshine Coast, Sydney, Melbourne & Australia-wide.
